ES-5V DIY Electric Guitar Kit

, , ,

ES-5V Electric Guitar Kit

Available only as a blank without Routing for Pickup or Controls

The ES-5V Hollow Mahogany Body Electric Guitar Kit features one P-90 single-coil pickup in the neck position, a trapeze tailpiece with a wooden bridge and a single volume and tone controls.

You will need to do your own routing for the P90 pickup and/or Volume/Tone controls!

This is the builder’s build – not for the faint-hearted. Measure twice, cut once.


FREE Shipping Anywhere in Australia!

Yes!  We also ship to the US, Canada, UK, European Union, SE Asia and other destinations.


AUD $369.95 incl. GST

In stock (can be backordered)

Set Neck Glue

Need glue to set the neck? Our 10ml bottle of Luthier grade glue is more than enough for 2 kits.

Product ID: 13272 SKU: ES-5V Categories: , , ,

Pit Bull Guitars ES-5V Electric Guitar Kit Includes:

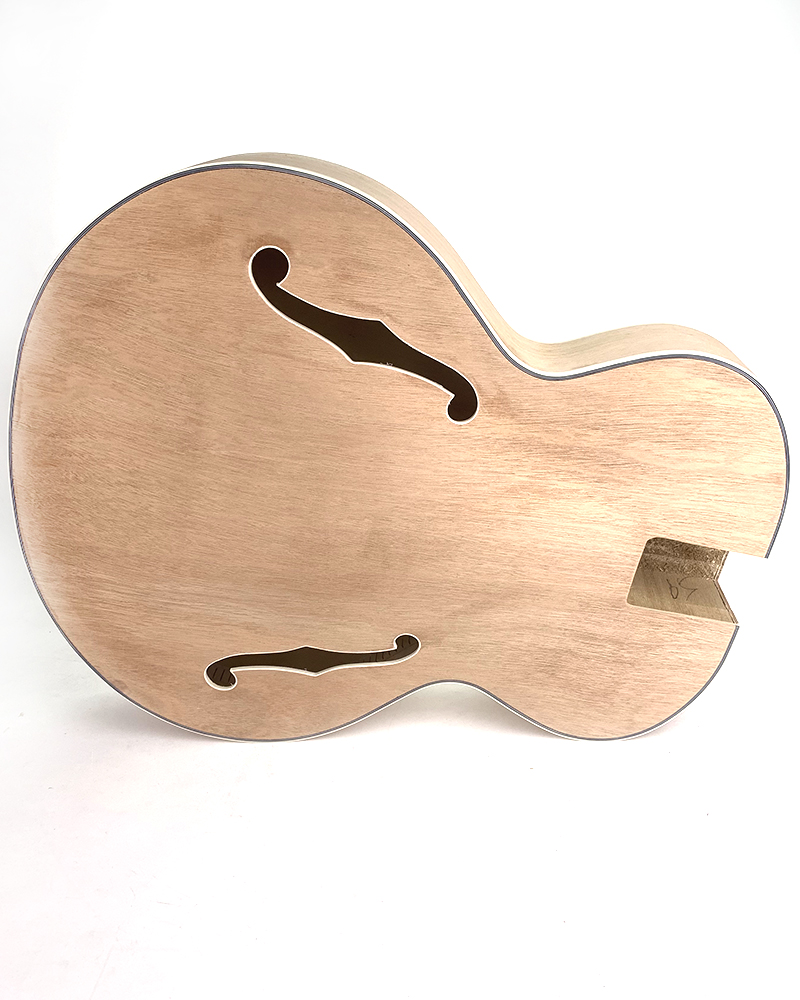

  • Hollow Mahogany body with triple binding (top) and cream binding (back)
  • F Holes with cream binding
  • Archtop and back
  • Body dimensions: 508mm x 417mm x 84mm
  • Mahogany set neck (C profile) and Rosewood fretboard
  • 19 medium jumbo frets (scale length: 24 3/4″ or 628mm)
  • Neck width: 42mm at nut, 47mm at 5th fret and 52mm at 12th fret
  • P-90 “Dog Ear” Pickup (included, but there is no routing for a pickup)
  • Chrome trapeze tailpiece
  • Vintage style wooden bridge (with metal saddles)
  • 2 x control knobs
  • Lead
  • Strap buttons
  • All electronics (pots, caps, wires and solder)
  • Free Ernie Ball Regular Slinky Strings (10-46)
  • FREE Shipping – Anywhere in Australia
  • Level of Soldering Difficulty:  Advanced – requires a number of solders that can be challenging for new builders.

This kit contains everything you need to build a complete, playable guitar, except your choice of finish.

Weight 4.6 kg
Dimensions 72 × 60 × 18 cm
